Modular welding table, double, nitrided 2000×1000 mm

Name: Modułowy stół spawalniczy podwójny azotowany 2000x1000 mm - GPPH Group
SKU: 28_100x100_AZ_MWT_PODW_200x100
Price: 24641.50 PLN
Availability: InStock

Modular welding table, double, nitrided 2000×1000 mm

Technical drawing MWT DOUBLE TABLE 2000x1000 mm fi28 100x100

Modular welding table, double, nitrided 2000×1000 mm

0 reviews

Pierwotna cena wynosiła: 28 990,00 zł35 657,70 zł.Aktualna cena wynosi: 24 641,50 zł30 309,05 zł. tax excl.Z VAT

Lowest price in the last 30 days: 24 641,50 zł30 309,05 zł

Sizes: 2000x1000mm

System

Grid

Nitriding

SKU 28_100x100_AZ_MWT_PODW_200x100 Kategorie Modular welding tables, MWT, Welding Tables, Stoły spawalnicze 2000x1000 mm

Need help placing your order?

Call us: +48 573 568 355 or write to us in the chat – We'll help you!

Shipping: to 21 days

Convenient payment methods

Delivery cost od 21 zł tax excl.

Related products

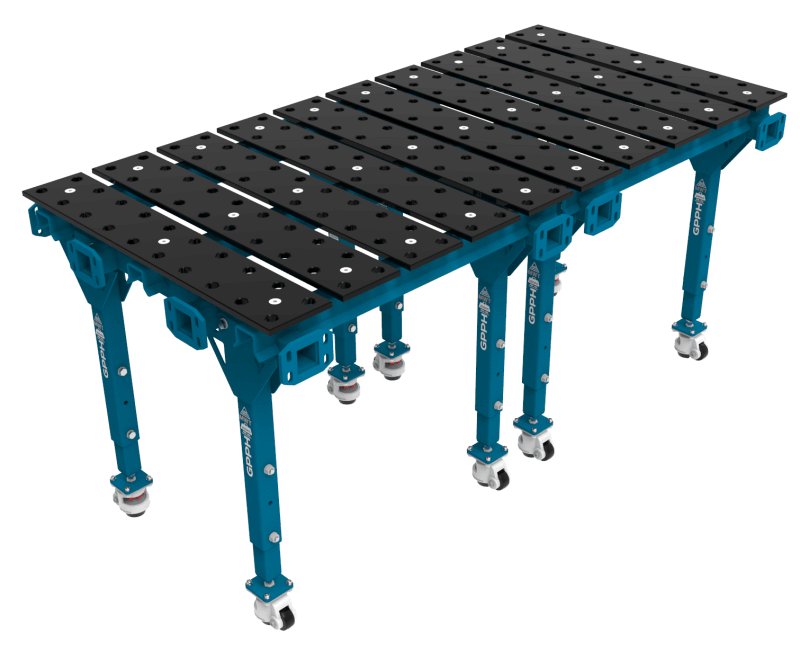

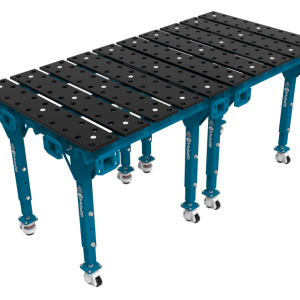

This auction is for a double modular welding table with tabletop plates made of tool steel subjected to the following treatment processes: nitriding + oxidation, sized 2000×1000.
W naszej ofercie posiadamy także stoły modułowe z płytami blatu wykonanymi z materiału: S355J2+N

Double modular tables are the most popular sets – they are tandems composed of two single tables. The design of the tables allows for expansion in any direction. Double tables, like other types of modular welding tables, are available in three size options: 2000×1000, 2400×1200, 3200×1500.

The table top of the modular tables consists of milled, sliding plates with a thickness of 15 mm, and by adjusting their surface, you achieve perfect flatness. They are made with a hole system of Ø28 mm in a 100×100 mm grid. They feature milled and chamfered holes that facilitate tool mounting. The modular tables are compatible with tools from the PRO series. Additionally, the design of our modular tables allows for an increased number of tool mounting positions in the gaps between the table plates – enhancing work ergonomics.

The modular tables have wheels with a foot in the base legs, with a load capacity of 250 kg per leg. The extending versions of the modular tables have adjustable supports in the extra legs. The height of the tables can be adjusted between 850 mm and 1150 mm, P=50 mm.

In order to obtain a larger working area, the tables can be combined with each other. As an option, you can also purchase side plates.
