Modular set with a large work surface 2630x1770 mm

Name: Modułowy stół spawalniczy pojedynczy rozkładany 2670x1600 mm - GPPH
SKU: 28_100x100_NAZ_MWT_POJ_R_267x160
Price: 10531.50 PLN
Availability: InStock

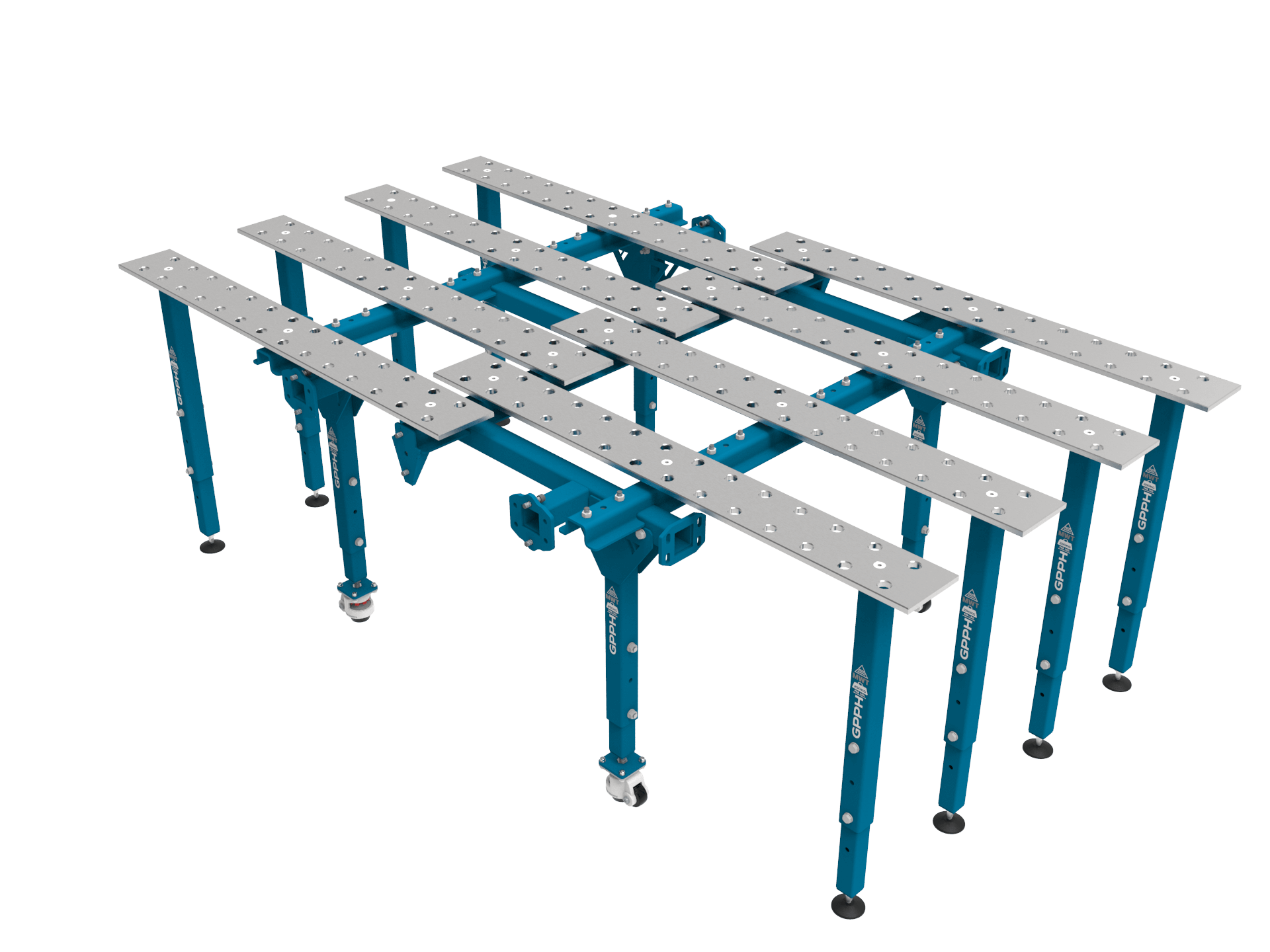

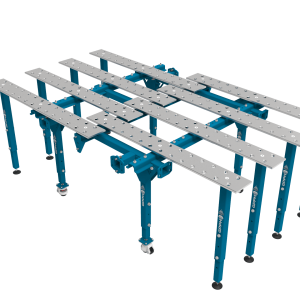

Modular single extendable welding table 2670x1600 mm

Technical drawing MWT SINGLE EXTENDABLE TABLE 2630x1600 mm fi28 100x100

Modular set with a large work surface 2630x1770 mm

0 reviews

Pierwotna cena wynosiła: 12 390,00 zł15 239,70 zł.Aktualna cena wynosi: 10 531,50 zł12 953,75 zł. tax excl.Z VAT

Lowest price in the last 30 days: 10 531,50 zł12 953,75 zł

Sizes: 2670x1600mm

System

Grid

SKU 28_100x100_NAZ_MWT_POJ_R_267x160 Kategorie Modular welding tables, MWT, Welding Tables, Stoły spawalnicze 1000x1000 mm

Need help placing your order?

Call us: +48 573 568 355 or write to us in the chat – We'll help you!

Shipping: to 21 days

Convenient payment methods

Delivery cost od 21 zł tax excl.

Related products

This auction is for a single folding modular welding table with tabletop plates made of S355J2+N steel, sized 2670×1600.
We also offer modular tables with tabletop plates made of tool steel subjected to the following treatment processes: nitriding + oxidation.

Single folding modular tables can be extended thanks to sliding plates and the use of additional legs. They are available in three dimensional versions: 1770×1000, 2170×1200, 2670×1600.

The table top of the modular tables consists of milled, sliding plates with a thickness of 15 mm, and by adjusting their surface, you achieve perfect flatness. They are made with a hole system of Ø28 mm in a 100×100 mm grid. They feature milled and chamfered holes that facilitate tool mounting. The modular tables are compatible with tools from the PRO series. Additionally, the design of our modular tables allows for an increased number of tool mounting positions in the gaps between the table plates – enhancing work ergonomics.

The modular tables have wheels with a foot in the base legs, with a load capacity of 250 kg per leg. The extending versions of the modular tables have adjustable supports in the extra legs. The height of the tables can be adjusted between 850 mm and 1150 mm, P=50 mm.

In order to obtain a larger working area, the tables can be combined with each other. As an option, you can also purchase side plates.
