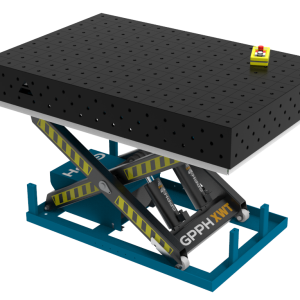

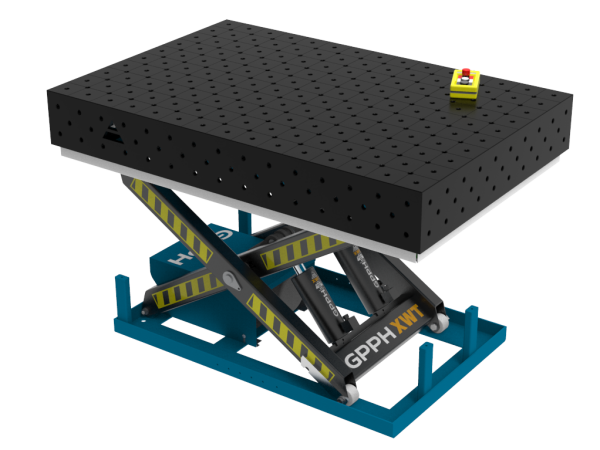

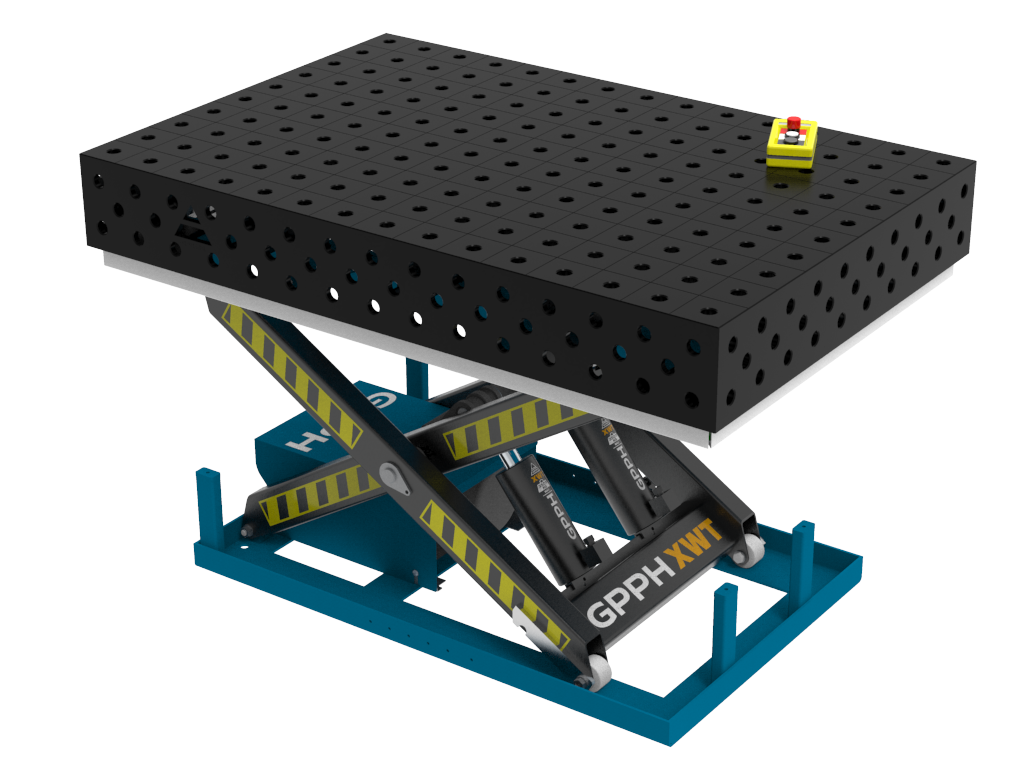

Welding Table ECO 1500×1000 mm with Hydraulic Lifting System

ECO Welding Table 1500x1000 mm with hydraulic lifting system, system 16, grid 50x50mm

ECO welding table 1500x1000 mm with hydraulic lifting system, system 16, grid 100x100 mm

ECO welding table 1500x1000 mm with hydraulic lifting system, system 16, diagonal grid

ECO welding table 1500x1000 mm with hydraulic lifting system, system 28, diagonal grid

Table remote control with hydraulic lifting system

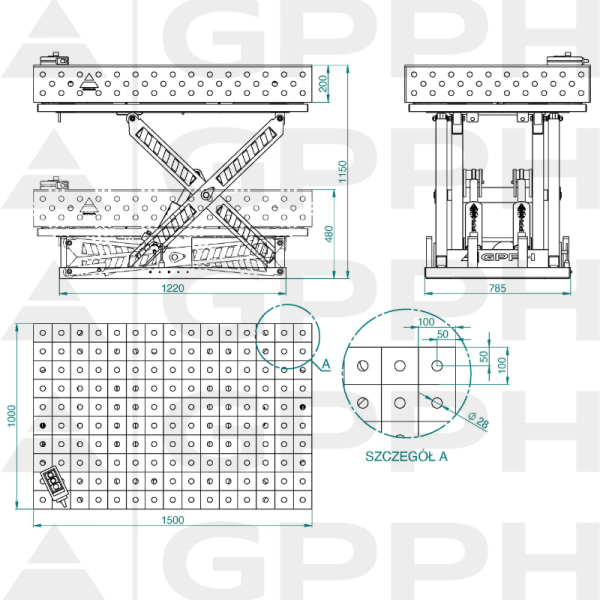

Technical drawing XWT ECO table 1500x1000 mm fi16 50x50

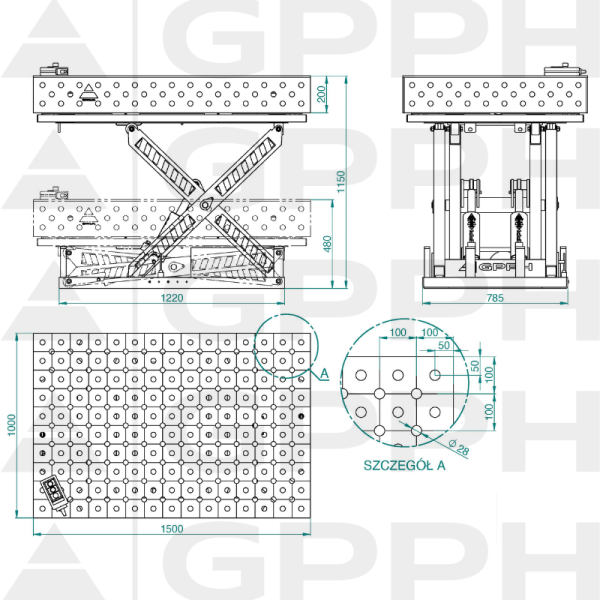

Technical drawing XWT ECO table 1500x1000 mm fi16 100x100

Technical drawing XWT ECO table 1500x1000 mm fi16 diagonal

Technical drawing XWT ECO table 1500x1000 mm fi28 100x100

Technical drawing XWT ECO table 1500x1000 mm fi28 diagonal

Welding Table ECO 1500×1000 mm with Hydraulic Lifting System

0 reviews

From Pierwotna cena wynosiła: 13 590,00 zł16 715,70 zł.Aktualna cena wynosi: 11 551,50 zł14 208,35 zł. tax excl.Z VAT

Lowest price in the last 30 days: 11 551,50 zł14 208,35 zł

Sizes: 1500x1000mm

Blat

System

Grid

SKU Not available Kategorie Lifting welding tables, Welding Tables, Stoły spawalnicze 1500x1000 mm, XWT

Need help placing your order?

Call us: +48 573 568 355 or write to us in the chat – We'll help you!

Shipping: to 21 days

Convenient payment methods

Delivery cost od 21 zł tax excl.

Related products

GPPH Welding Tables with a hydraulic lifting system are specialized tables with automatic height adjustment of the worktop.
Thanks to this feature, you can quickly and easily achieve the ideal working height, ensuring a high level of comfort during work.

Welding tables with a hydraulic lifting system feature:

an overload valve that prevents lifting loads that are too heavy;
a safety valve that stops lowering in the event of hydraulic hose rupture;
limit switches that protect against crushing or injury to the user.

Stoły z hydraulicznym systemem podnoszenia występują w pięciu seriach blatów stołów spawalniczych GPPH: PRO, PRO INOX, PLUS, PLUS INOX oraz ECO, a każda seria w 4 wersjach wymiarowych.

Each table top is available with Ø28 mm holes in 100×100 mm and diagonal grids, as well as with Ø16 mm holes in 50×50 mm, 100×100 mm, and diagonal grids.

A Welding Table Must Be Flat! The ECO table tops, with a thickness of 8 mm, feature dense ribbing that ensures a perfectly flat working surface. The table’s massive and rigid substructure guarantees maximum stability during use and protects the surface from deformation. The flatness tolerance across the entire surface is ±0.5 mm* and the manufacturing tolerance of the welding table holes is ±0.1 mm.

Technical specifications of the base with hydraulic lifting system:

power supply voltage: 400 V
speed: 1400 rpm
protection class: IP54
insulation class: F

Technical parameters

Maximum load capacity [kg]: 1600
Lifting time with load [s]: 20–25
Maximum table height [mm]: 1150
Minimum table height [mm]: 460
Lifter base dimensions [mm]: 1220×785
Engine power [kW]: 2.2

Parameters:

Select a variant to view its attributes.

Size: 1500x1000mm
Series: XWT (8mm, 12mm, 15mm)
Maximum load capacity [kg]: 1600
Maximum table height [mm]: 1150
Minimum table height [mm]: 460
Lifter base dimensions [mm]: 1220x785
Engine power [kW]: 2.2
Table flatness tolerance (over the entire surface) ±0,5 mm
Tolerance of hole dimensions: ±0,1 mm
